SMA Straight Solder / Solder Plug

30-014-D3-HB

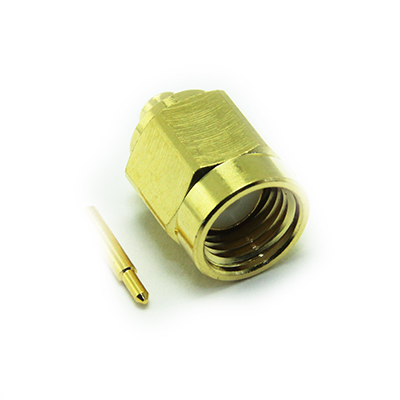

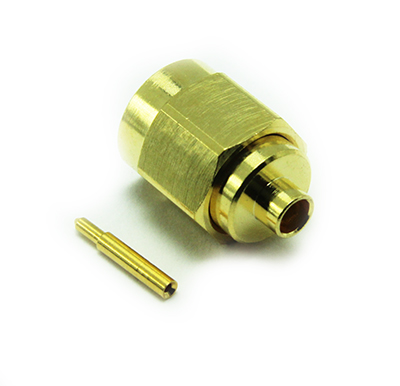

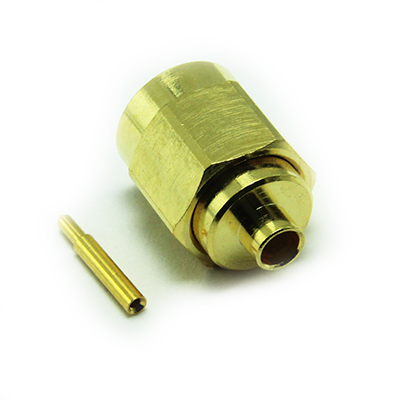

SMA plug for direct solder to semi-rigid cable. Centre contact and body are gold plated. Suitable for use with RG402 (0.141") and similar cables in group HB.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12.5GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 100
Contact Retention 27N min
Cable Retention 200N min
Weight 3.7g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Recommended Coupling Nut Torque 60Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group HB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG402 (.141") HB 50 3.58 PTFE 3.02 SCCS 0.91 1/0.91 Solid Copper Tube

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP033
Stripping Dimensions 25-279-SD

Accessories

Protective PVC Cap 100-124

Downloads

Interface Dimensions C-SMA
Stripping Dimensions 25-279-SD
Assembly Process AP033
