30-045-H3-DA

Shop online for RF Connectors and Cable Assemblies

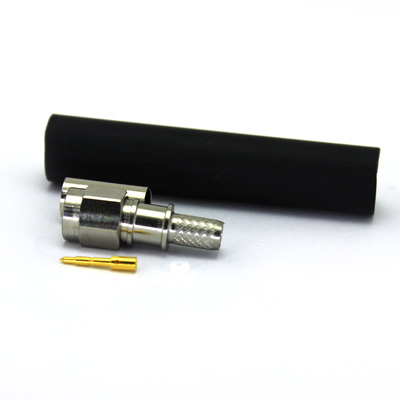

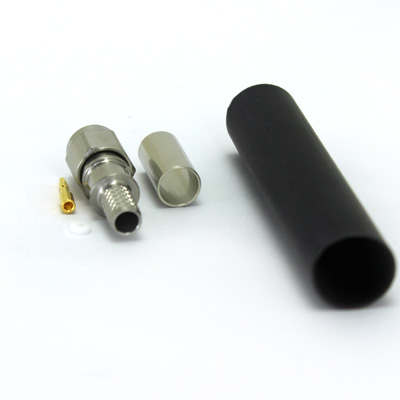

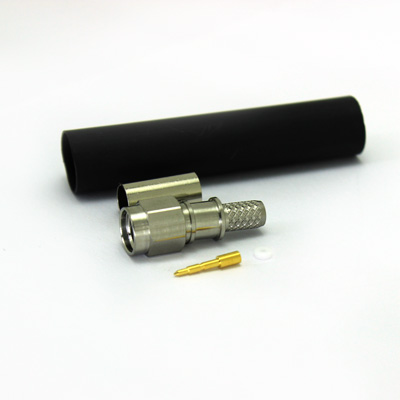

SMA Stainless Steel Crimp / Crimp Plug IP68 Mated

SMA straight full crimp/crimp plug. With gold plated contact and Passivated body. Contact and crimp sleeve are annealed for enhanced performance. IP68 Mated when used with heat shrink outer contact and Hex nut made from stainless steel Suitable for use with cables in group DA.

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	12.GHz
Dielectric Withstand Voltage	750 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 60169-15
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	27N min
Cable Retention	150N min
Weight	4.72g
Mating Force	23Ncn
Un-Coupling Force	23Ncn
Recommended Coupling Nut Torque	1.13Nm Max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP68
Materials
Centre Contact	Brass
Outer Contact	Stainless Steel
Insulator	PTFE
Screw Coupling Nut	Stainless Steel - Passivated
Gasket	Silicon
Centre Contact Plating	Gold
Outer Contact Plating	Passivated
Pack Size	1

Suitable for Cables in Group DA

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Times LMR®200	DA	50	4.95	PEF	2.95	BC	1.12	1/1.12	Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP001
Stripping Dimensions	SD03
Centre Contact	1.72mm Hex	96-336A
Outer Contact	5.41mm Hex	96-336A

Accessories

Centre Contact Crimp Tool	96-336A
Outer Contact Crimp Tool	96-336A
Protective PVC Cap	100-124

Downloads

Interface Dimensions	C-SMA
Stripping Dimensions	SD03
Data Sheet	30 045 H3 DA REV B00 1
Assembly Process	AP001
