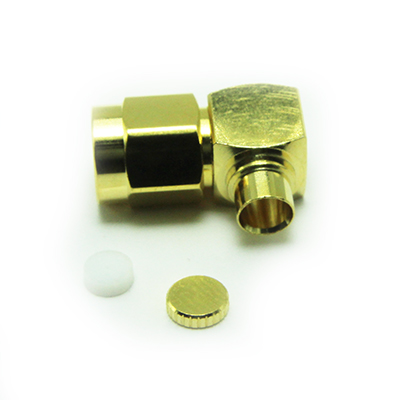

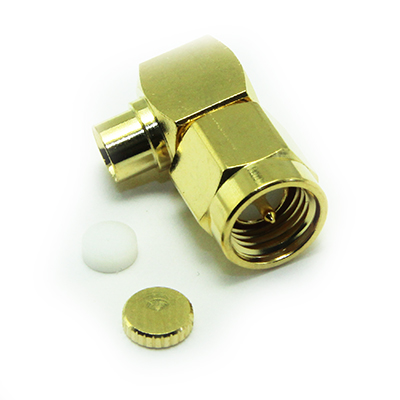

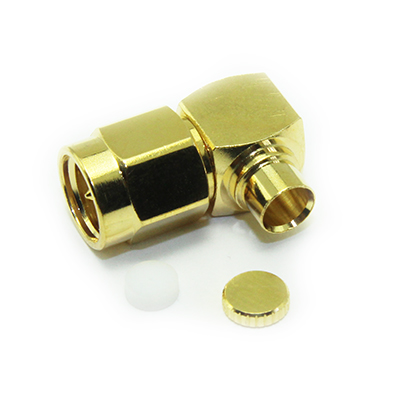

SMA Right Angle Solder / Solder Plug

30-108-D3-HB

SMA direct solder right angle plug for semi-rigid. Centre contact and body are soldered. Contact and body are gold plated. Suitable for use with RG402 (0.141") semi rigid and similar cables in group HB.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12.5GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 100
Contact Retention 27N min
Cable Retention 200N min
Weight 5.8g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Recommended Coupling Nut Torque 60Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group HB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG402 (.141") HB 50 3.58 PTFE 3.02 SCCS 0.91 1/0.91 Solid Copper Tube

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP033
Stripping Dimensions 25-279-SD
Centre Contact Solder
Outer Contact Solder

Accessories

Protective PVC Cap 100-124

Downloads

Interface Dimensions C-SMA
Stripping Dimensions 25-279-SD
Assembly Process AP033
