31-005-B3-AH

SMA Reverse Polarity Crimp / Crimp Plug

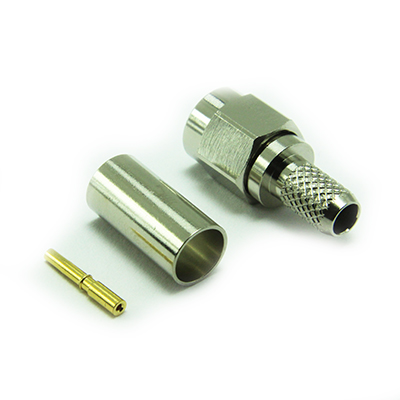

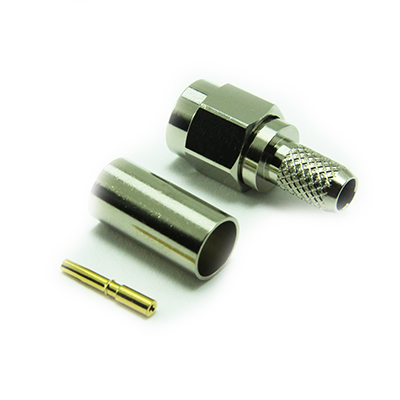

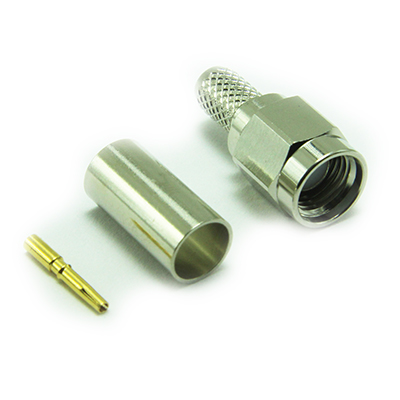

SMA reverse polarity straight full crimp plug. With gold plated contact and nickel plated body. Contact and crimp sleeve are annealed for enhanced performance. Suitable for use with RG58 and similar cables in group AH.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	12.5GHz
Dielectric Withstand Voltage	750 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 60169-15
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	100
Contact Retention	27N min
Cable Retention	100N min
Weight	3.9g
Mating Force	23Ncn
Un-Coupling Force	23Ncn
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP67
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group AH

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 7806R	AH	50	4.95	PEF	2.8	BC	0.94	1/0.94	Foil and Braid
Belden 9203	AH	50	4.95	PE	2.95	TC	0.9	19/0.18	Copper Braid
KX15	AH	50	4.95	PE	2.95	TC	0.91	19/0.18	Copper Braid
KX23	AH	50	5.1	PTFE	2.95	SC	1.02	7/0.34	Double Copper Braid
PSF 1/6	AH	50	5	PE	2.95	BC	0.96	7/0.32	Double Copper Braid
RG141	AH	50	4.83	PTFE	3	SCCS	0.94	1/0.94	Copper Braid
RG58	AH	50	4.95	PE	2.95	TC	0.91	19/0.18	Copper Braid
Times LMR®195	AH	50	4.95	PEF	2.79	BC	0.94	1/0.94	Foil and Braid
URM43	AH	50	5	PE	2.95	BC	0.9	1/0.9	Copper Braid
URM76	AH	50	5	PE	2.95	TC	0.96	7/0.32	Copper Braid
WBC195	AH	50	4.95	PE	2.79	BC	0.94	1/0.94	Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact	.95mm Sq	96-HTS76
Outer Contact	5.41mm Hex	96-HTS76

Accessories

Centre Contact Crimp Tool	96-HTS76
Outer Contact Crimp Tool	96-HTS76
Rotary Cable Stripper	96-312B
Protective PVC Cap	100-124
SMA Plug Nut Runner	96-3000

Downloads

Interface Dimensions

C-RP-SMA
