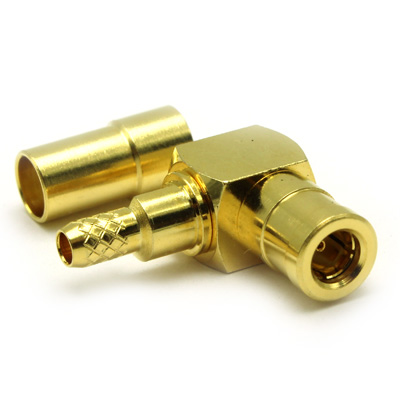

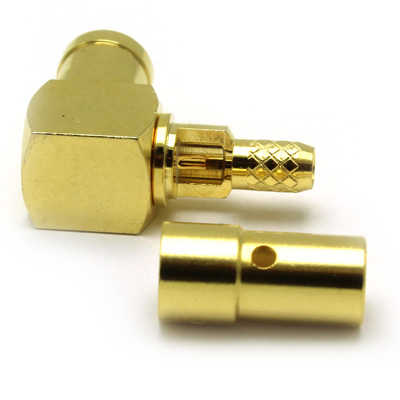

SMB Right Angle Capless Solder / Crimp Plug

32-105-D3-BD

SMB right angle plug. This 50 ohm plug is adapted for use with 75 ohm cable, centre and outer contact are gold plated. The contact is soldered and the cable braid is crimped. Suitable for use with BT3002 and similar cables in group BD.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range 1GHz
Dielectric Withstand Voltage 500 Veff
Insulation Resistance 1000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-10
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 220N min
Weight
Mating Force 62N max
Un-Coupling Force 62N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP30
Materials
Centre Contact Phosphor Bronze
Outer Contact Phosphor Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group BD

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
BT3002 BD 75 3.55 PE 1.95 BC 0.31 1/0.31 Double Copper Braid
TZC75024 BD 75 3.55 PE 1.95 BC 0.31 1/0.31 Double Copper Braid
TZC75025 BD 75 4.55 PE 2.95 BC 0.32 1/0.32 Double Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Stripping Dimensions SD06
Centre Contact Solder
Outer Contact 4.52mm Hex 96-HTS-43

Accessories

Outer Contact Crimp Tool 96-HTS-43

Downloads

Interface Dimensions C-SMB
Stripping Dimensions SD06
Data Sheet 32 105 D3 BD REV A00 1
