32-245-D10-AD

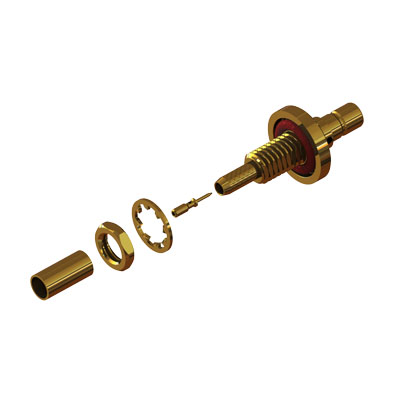

SMB Front Mount Bulkhead Crimp / Crimp Jack IP68 Un-Mated

SMB 50 ohm IP68 Sealed Un-Mated bulkhead mount full crimp jack, front mounted with a single flat on the body. Gold plated contact's and gold plated body. The center contact and crimp sleeve are annealed for enhanced performance. Suitable for RG316 and similar cables in group AD.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	4GHz
Dielectric Withstand Voltage	500 Veff
Insulation Resistance	1000 M-Ohm
Mechanical Specification
Design Standard	IEC 60169-10
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	100N min
Weight	3.05g
Mating Force	62N max
Un-Coupling Force	62N max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Un-Mated )	IP68 ( 3m x 2Hours )
Materials
Centre Contact	Beryllium Copper
Outer Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Suitable for Cables in Group AD

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
KX22	AD	50	2.5	PTFE	1.52	SCCS	0.51	7/0.17	Copper Braid
KX3	AD	50	2.54	PE	1.5	CCS	0.48	7/0.16	Copper Braid
RG174	AD	50	2.79	PE	1.52	BCCS	0.48	7/0.16	Copper Braid
RG188	AD	50	2.67	PTFE	1.52	SCCS	0.51	7/0.17	Copper Braid
RG316	AD	50	2.49	PTFE	1.52	SCCS	0.51	7/0.17	Copper Braid
Times LMR®100	AD	50	2.79	PE	1.52	BCCS	0.46	1/0.46	Foil and Braid
URM95	AD	50	2.3	PE	1.5	SCCS	0.46	1/0.46	Copper Braid
WBC100	AD	50	2.67	PE	1.52	CCS	0.46	1/0.46	Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP023I
Stripping Dimensions	SD03
Centre Contact	0.95 Sq	96-HTS-43
Outer Contact	3.25mm Hex	96-HTS-43

Accessories

Centre Contact Crimp Tool	96-HTS-43
Outer Contact Crimp Tool	96-HTS-43

Downloads

Interface Dimensions	C-SMB
Stripping Dimensions	SD03
Data Sheet	32 245 D10 AD REV A00 1
Assembly Process	AP023I
