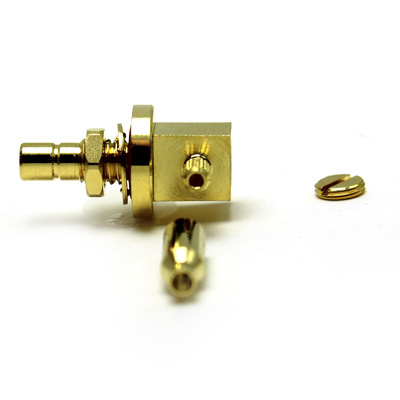

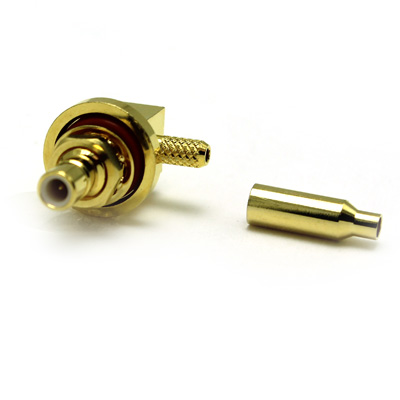

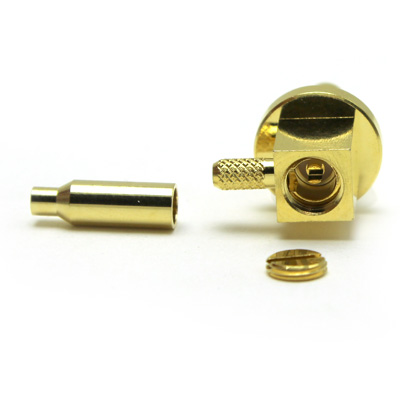

SMB Right Angle Bulkhead Solder/Crimp Jack IP68 Hermetically Sealed

32-271-D10-AA

SMB 50 ohm Right Angle Rear Mounted bulkhead mount solder crimp jack IP68 Hermetically Sealed and tested to 50m unmated, with a single flat on the body. Gold plated contact and body. The centre contact and crimp sleeve are annealed for enhanced performance. Suitable for RG178 and similar cables in group AA.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 4GHz
Dielectric Withstand Voltage 500 Veff
Insulation Resistance 1000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-10
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 4.83g
Mating Force 62N max
Un-Coupling Force 62N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Unmated ) IP68 3m x 2 Hours ( Tested to 50m )
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG178 AA 50 1.8 PTFE 0.84 SCCS 0.3 7/0.1 Copper Braid
RG196 AA 50 1.83 PTFE 0.86 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP017
Stripping Dimensions 32 271 1 D3 SD
Outer Contact 3.25mm Hex 96-HTS43

Accessories

Outer Contact Crimp Tool 96-HTS43

Downloads

Interface Dimensions C-SMB
Stripping Dimensions 32 271 1 D3 SD
Data Sheet 32 271 D10 AA REV A00 1
Assembly Process AP017
