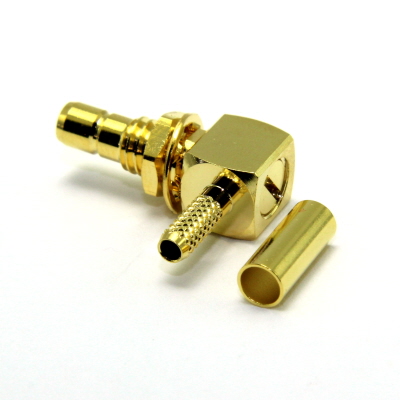

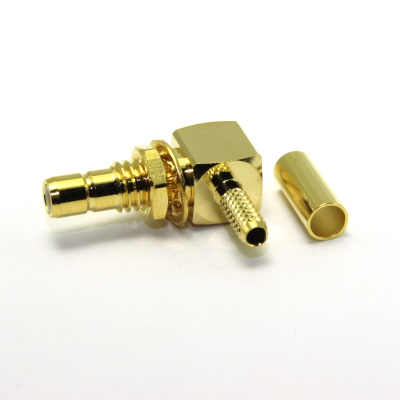

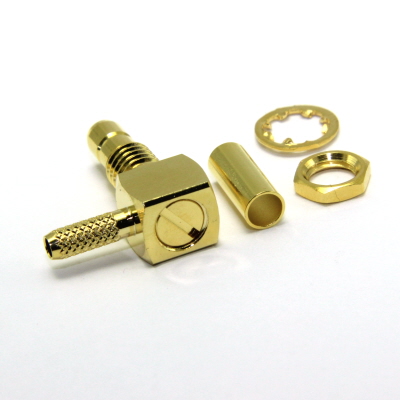

SMB Right Angle Rear Mount Bulkhead Solder / Crimp jack

32-271-D3-AD

SMB 50 ohm right angle bulkhead jack. With gold plated body and contact, the centre contact is soldered and the braid crimped. Suitable for use with RG174 and similar cables in group AD.

From £2.25 each ex VAT
1-9 = £2.95 |  10-24 = £2.65 |  25-49 = £2.55 |  50-99 = £2.45 |  +100 = £2.25

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 4GHz
Dielectric Withstand Voltage 500 Veff
Insulation Resistance 1000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-10
RoHS Compliant Yes
Centre Contact Termination
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 100N min
Weight
Mating Force 62N max
Un-Coupling Force 62N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP30
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AD

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX22 AD 50 2.5 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
KX3 AD 50 2.54 PE 1.5 CCS 0.48 7/0.16 Copper Braid
RG174 AD 50 2.79 PE 1.52 BCCS 0.48 7/0.16 Copper Braid
RG188 AD 50 2.67 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
RG316 AD 50 2.49 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
Times LMR®100 AD 50 2.79 PE 1.52 BCCS 0.46 1/0.46 Foil and Braid
URM95 AD 50 2.3 PE 1.5 SCCS 0.46 1/0.46 Copper Braid
WBC100 AD 50 2.67 PE 1.52 CCS 0.46 1/0.46 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact Solder
Outer Contact 3.25mm Hex 96-336J

Accessories

Outer Contact Crimp Tool 96-336J

Downloads

Interface Dimensions C-SMB
Data Sheet 32-271-D3-AD REV A00-1
