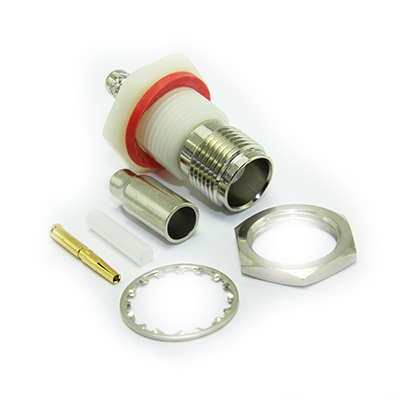

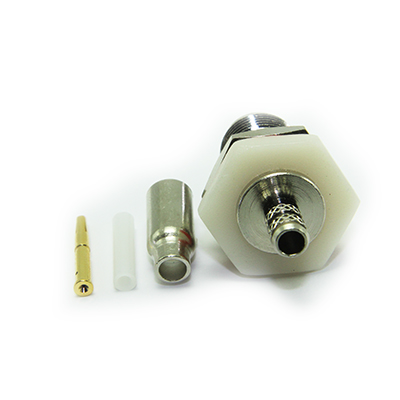

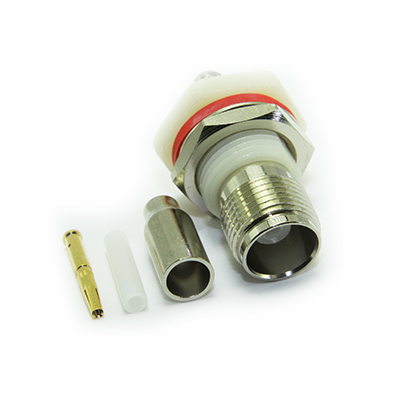

TNC Insulated Rear Mnt Bulkhead Straight Crimp / Crimp Jack (4 Part)

13-260-A5-AB

TNC 75 ohm full crimp insulated bulkhead jack. This rear mounted jack has a gold plated centre contact. Contact and crimp sleeve are annealed to provide a robust and durable termination. Suitable for use with RG179 and similar cables in group AB.

From £2.95 each ex VAT
1-9 = £4.75 |  10-24 = £4.25 |  25-49 = £3.95 |  50-99 = £3.50 |  +100 = £2.95

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 60N min
Weight
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Body Insulation ABS
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 179DT AB 75 2.54 PEF 1.42 BC 0.31 1/0.31 Foil and Braid
RG179 B/U AB 75 2.54 PTFE 1.6 SCCS 0.3 7/0.1 Copper Braid
RG179 Solid AB 75 2.54 Foam 1.6 SCSC 0.3 1/0.3 Copper Braid
RG179 Stranded AB 75 2.54 Foam 1.6 SCSC 0.3 7/0.1 Copper Braid
RG187 AB 75 2.67 PTFE 1.52 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP002
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 5.41mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A
Black Strain Relief Boot 97-800-BK-03
Red Strain Relief Boot 97-800-RE-03
Blue Strain Relief Boot 97-800-BU-03
Yellow Strain Relief Boot 97-800-YE-03
Green Strain Relief Boot 97-800-GN-03
Hex Nut 100-027
Locking Washer 100-028
Castle Nut 100-075
Castle Nut Spanner 96-1140
Crimp Sleeve 100-019

Downloads

Interface Dimensions C-TNC-75
Stripping Dimensions SD01
Assembly Process AP002
