13-264-B3-AA

Shop online for RF Connectors and Cable Assemblies

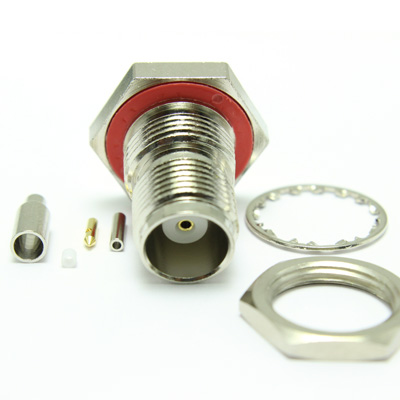

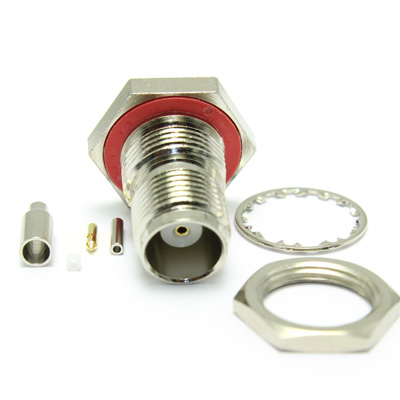

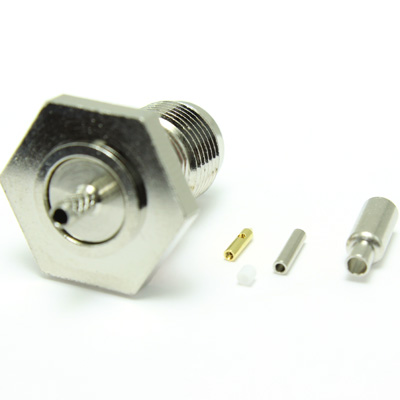

TNC Rear Mount Bulkhead Straight Crimp / Crimp Jack ( Bullet Contact )

TNC 50 ohm full crimp bulkhead jack. This rear mounted jack has a 2 part gold plated centre contact. Contact and crimp sleeve are annealed to provide a robust and durable termination. Suitable for use with RG178 and similar cables in group AA.

From £2.95 each ex VAT
1-9 = £4.75 | 10-24 = £4.25 | 25-49 = £3.95 | 50-99 = £3.50 | +100 = £2.95

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	Up to 11GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	60N min
Weight	17g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Insulator	Delrin
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group AA

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
RG178	AA	50	1.8	PTFE	0.84	SCCS	0.3	7/0.1	Copper Braid
RG196	AA	50	1.83	PTFE	0.86	SCCS	0.3	7/0.1	Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact	1.07 Square	96-336J
Outer Contact	3.25mm Hex	96-336J

Accessories

Outer Contact Crimp Tool	96-336J
Hex Nut	100-027
Locking Washer	100-028
Castle Nut	100-075
Castle Nut Spanner	96-1140

Downloads

Interface Dimensions	C-50-Ohm-TNC
Data Sheet	13 264 B3 AA REV A00 1
