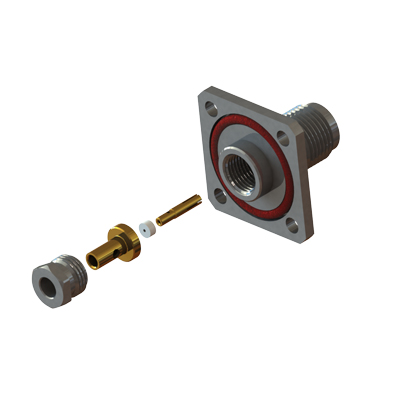

TNC 4 Hole 1" Sq Flange Stainless Steel Solder/Solder Clamp Jack

13-383-H3-HA-25.4

TNC 50 ohm 4 Hole 1"Square Flange with a "O" Ring Gasket Stainless Steel Jack with a Gold Plated Screw in Solder Insert for direct Solder of Semi Rigid Cables the Outer Body is Made From Passivated Stainless Steel and the Solder Insert is Gold Plated Stainless Steel

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 6GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 500
Contact Retention 10N min
Weight 18.93g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +125 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Phosphor Bronze
Outer Contact Stainless Steel
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Passivated
Pack Size 1

Suitable for Cables in Group HA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG405 (.085") HA 50 2.2 PTFE 1.68 SCCS 0.51 1/0.51 Solid Copper Tube

Performance

Performance Data available on request, please contact COAX

Assembly

Accessories

Downloads

Interface Dimensions C-50-Ohm-TNC
Data Sheet 13 383 H3 HA REV A00 1
