14-054-A3-AN

Shop online for RF Connectors and Cable Assemblies

TNC Reverse Polarity Crimp / Crimp Jack

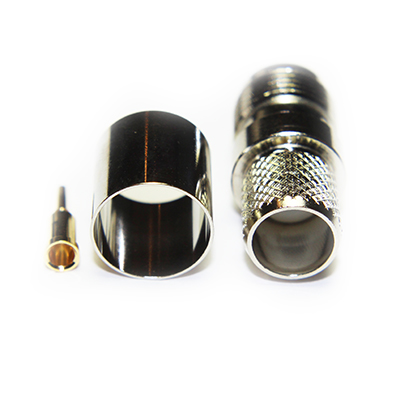

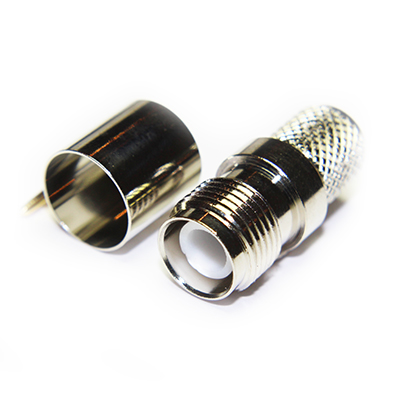

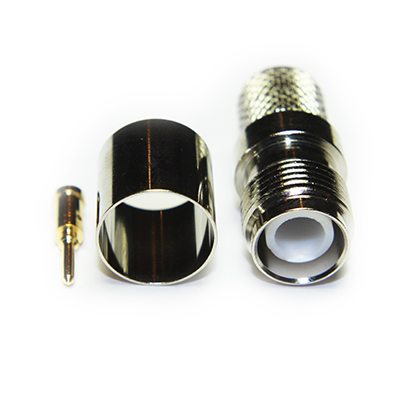

TNC 50 ohm reverse polarity, straight full crimp jack. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG213 or similar cables in group AN.

From £2.75 each ex VAT
1-9 = £3.95 | 10-24 = £3.75 | 25-49 = £3.05 | 50-99 = £2.95 | +100 = £2.75

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	Up to 11GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	250
Contact Retention	10N min
Cable Retention	150N min
Weight
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	Delrin
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group AN

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
KX4	AN	50	10.3	PE	7.25	BC	2.25	7/0.75	CopperBraid
RG213	AN	50	10.29	PE	7.24	BC	2.25	7/0.75	CopperBraid
URM67	AN	50	10.3	PEF	7.25	BC	2.25	7/0.75	CopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP001
Stripping Dimensions	SD01
Centre Contact	Solder or 2.54mm Hex	96-336K
Outer Contact	10.9 mm Hex	96-336K

Accessories

Centre Contact Crimp Tool	96-336K
Outer Contact Crimp Tool	96-336K
Rotary Cable Stripper	96-312S

Downloads

Interface Dimensions	C-RP-TNC-50
Stripping Dimensions	SD01
Assembly Process	AP001
