13-005-A0-AB

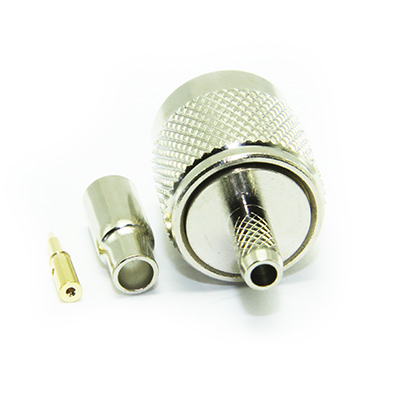

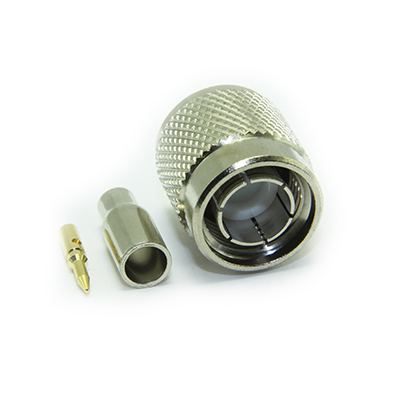

TNC Crimp / Crimp Plug 75 Ohm ( 4 Part )

TNC 75 ohm straight crimp plug, for applications up to 2GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG179 or similar cables in group AB.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 1GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	250
Contact Retention	10N min
Cable Retention	60N min
Weight
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	Delrin
Threaded Coupling Nut	Brass
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group AB

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 179DT	AB	75	2.54	PEF	1.42	BC	0.31	1/0.31	Foil and Braid
RG179 B/U	AB	75	2.54	PTFE	1.6	SCCS	0.3	7/0.1	Copper Braid
RG179 Solid	AB	75	2.54	Foam	1.6	SCSC	0.3	1/0.3	Copper Braid
RG179 Stranded	AB	75	2.54	Foam	1.6	SCSC	0.3	7/0.1	Copper Braid
RG187	AB	75	2.67	PTFE	1.52	SCCS	0.3	7/0.1	Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP002
Stripping Dimensions	SD01
Centre Contact	1.72 mm Hex	96-336A
Outer Contact	5.41mm Hex	96-336A

Accessories

Centre Contact Crimp Tool	96-336A
Outer Contact Crimp Tool	96-336A
Black Strain Relief Boot	97-800-BK-03
Red Strain Relief Boot	97-800-RE-03
Blue Strain Relief Boot	97-800-BU-03
Yellow Strain Relief Boot	97-800-YE-03
Green Strain Relief Boot	97-800-GN-03

Downloads

Interface Dimensions	C-TNC-75
Stripping Dimensions	SD01
Assembly Process	AP002
