TNC Crimp / Crimp Plug 50 Ohm

13-005-B3-DB

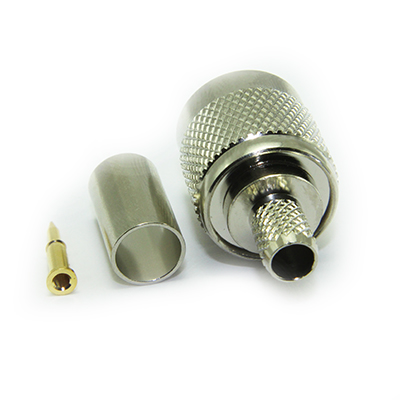

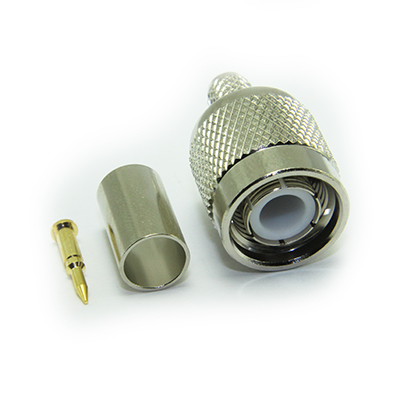

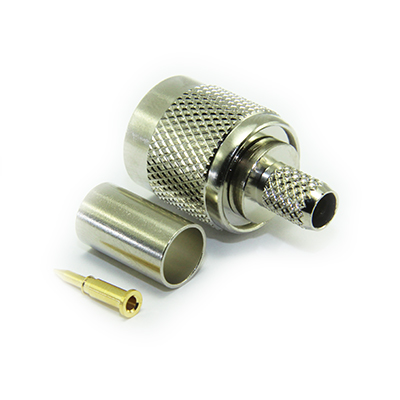

TNC 50 ohm straight full crimp plug. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for Times LMR®240 or similar cables in group DB.

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 150N min
Weight 13.18g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Threaded Coupling Nut Brass
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group DB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 155 A00 DB 50 5.4 PEF 3.9 BC 1.41 19/0.28 Foil and Braid
Belden 155 PE DB 50 10.3 PEF 3.9 BC 1.4 19/0.28 Foil and Braid
Times LMR®240 DB 50 6.1 PEF 3.81 BC 1.42 1/1.42 Foil and Braid

Performance

Performance Data 13 005 B3 DB PD
Return Loss
1Ghz -30.63db
2Ghz -27.85db
4.5Ghz -24.59db
6Ghz -20.7db

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 6.48mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A

Downloads

Interface Dimensions C-50-Ohm-TNC
Stripping Dimensions SD01
Data Sheet 13 005 B3 DB A01 1
Assembly Process AP001
Performance Data 13 005 B3 DB PD
