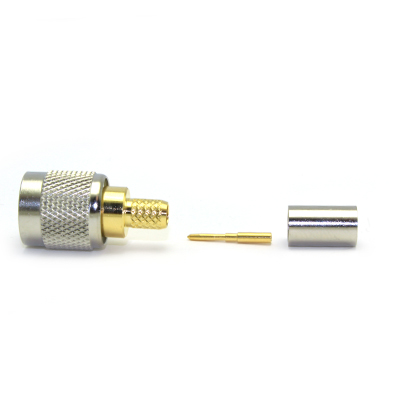

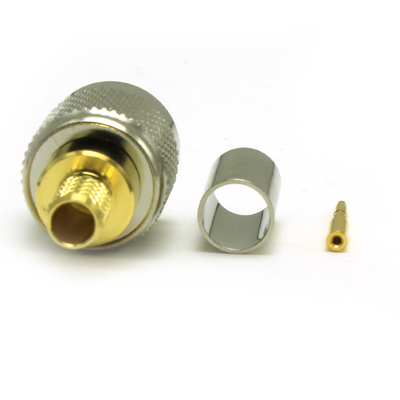

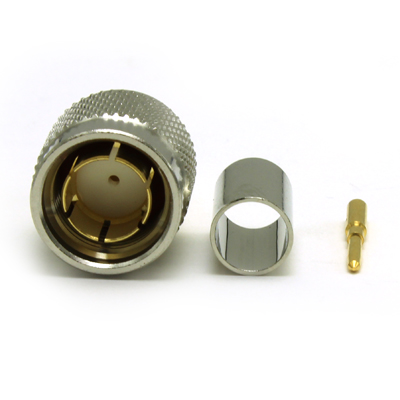

TNC Crimp / Crimp Plug 75 Ohm 12G

13-005-D126-FB

TNC 12G 75 ohm straight crimp plug, for applications up to 12GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre and outer contacts are gold plated. Suitable for cables in group FB.

From £4.14 each ex VAT
1-9 = £12.42 |  10-24 = £8.73 |  25-49 = £6.21 |  50-99 = £4.78 |  +100 = £4.14

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 60N min
Weight 13.06g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Threaded Coupling Nut Brass
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group FB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
70081NH FB 75 5.92 PEF 3.68 BC 0.81 1/0.81 Bonded Foil and Braid
Belden 1505A FB 75 5.94 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 4505ANH FB 75 5.99 PEF 3.7 BC 0.81 1/0.81 Bonded Foil and Braid
Belden 4505ANH FB 75 5.99 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 4505R FB 75 5.94 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 70081NH FB 75 5.92 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Bryant BD SD50A FB 75 6.1 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Bryant BD SD50A FB 75 6.1 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Canare L-4CFB FB 75 6.1 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Canare L-4CHD FB 75 6.1 PEF 3.68 BC 0.82 1/0.82 Foil and Braid
Conducfil 14472 FB 75 5.9 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Draka 0.8/3.7AF FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Draka HD PRO 0.8/3.7 AF FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Image 720 FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Percon VK6 FB 75 6 PEF 3.7 BC 0.81 1/0.81 Foil and Braid
Percon VK66 FB 75 6.14 PEF 3.7 BC 0.97 7/0.29 Double Copper Braid

Performance

Performance Data 13 005 D126 FB PD
Return Loss
3GHz -33db
4.5GHz -26db
6GHz -25db
12GHz -17db
18GHz -14db

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72mm Hex 96-HTS-76
Outer Contact 6.48mmHex 96-HTS-76

Accessories

Centre Contact Crimp Tool 96-HTS-76
Outer Contact Crimp Tool 96-HTS-76

Downloads

Interface Dimensions C-TNC-75
Stripping Dimensions SD01
Data Sheet 13 005 D126 FB REV A00 1
Assembly Process AP001
Performance Data 13 005 D126 FB PD
