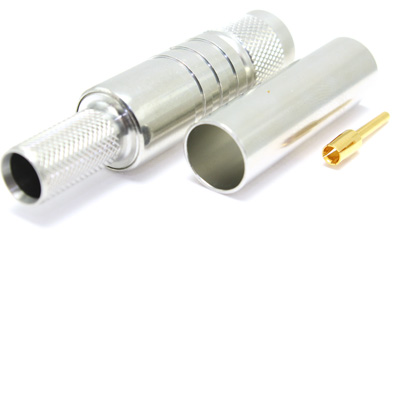

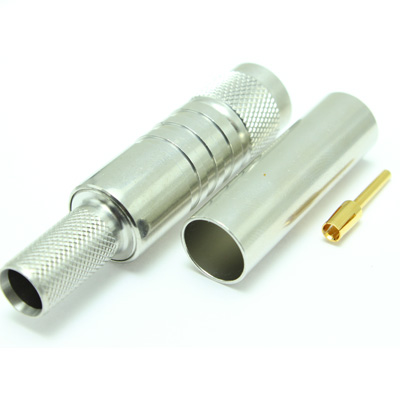

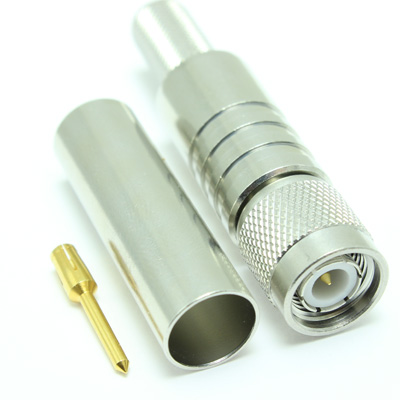

TNC Straight Plug with Easy Fit Anti-Piston Contact

13-018-Q3-DO

TNC 50 ohm straight plug with Easy-Fit Anti-Piston Contact. The 2 part contact design allows the centre conductor to slide within the connector where movement of the cable centre conductor, due to temperature changes is found. The Easy-Fit contact is quickly assembled without the need for tooling by simply pushing it onto the conductor. The outer braid is crimped with a special long sleeve that provides additional support. Contact is gold plated and body is White Bronze. Suitable for use with the Rigid Times LMR®400 cable or similar cables.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Easy Fit
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 220N min
Weight
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Threaded Coupling Nut Brass
Centre Contact Plating Gold
Outer Contact Plating White Bronze
Pack Size 1

Suitable for Cables in Group DO

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Times LMR®400 Rigid DrainBraid DO 50 10.3 PEF 7.24 BCCAI 2.74 1/2.74 -

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact Easy Push Fit

Accessories

Downloads

Interface Dimensions C-50-Ohm-TNC
Data Sheet 13 018 Q3 D0 REV C03 0
