TNC Right Angle Crimp / Crimp Plug

13-104-A3-AH

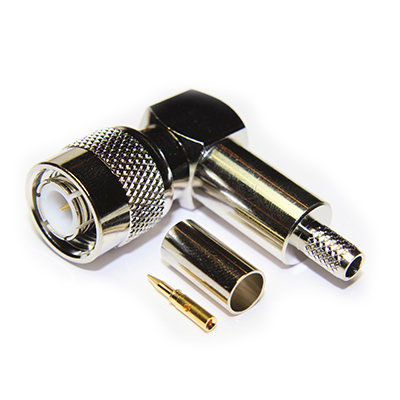

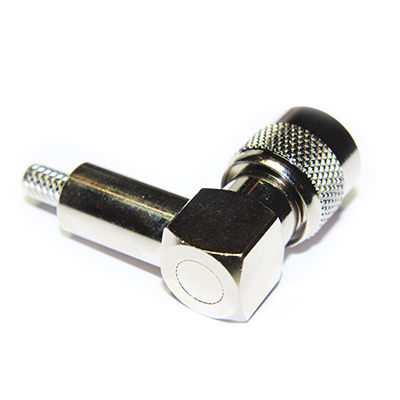

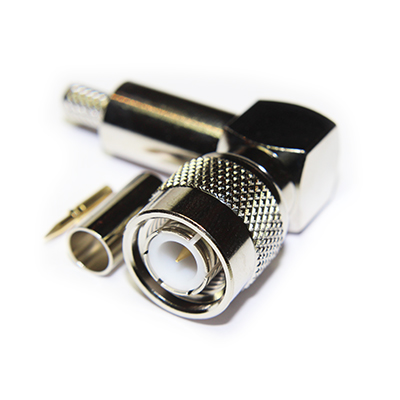

TNC 50 ohm right angle full crimp plug. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG58 or similar cables in group AH.

From £2.70 each ex VAT
1-9 = £3.75 |  10-24 = £3.50 |  25-49 = £3.20 |  50-99 = £3.00 |  +100 = £2.70

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 100N min
Weight 31.22g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator Delrin
Threaded Coupling Nut Brass
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AH

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 7806R AH 50 4.95 PEF 2.8 BC 0.94 1/0.94 Foil and Braid
Belden 9203 AH 50 4.95 PE 2.95 TC 0.9 19/0.18 Copper Braid
KX15 AH 50 4.95 PE 2.95 TC 0.91 19/0.18 Copper Braid
KX23 AH 50 5.1 PTFE 2.95 SC 1.02 7/0.34 Double Copper Braid
PSF 1/6 AH 50 5 PE 2.95 BC 0.96 7/0.32 Double Copper Braid
RG141 AH 50 4.83 PTFE 3 SCCS 0.94 1/0.94 Copper Braid
RG58 AH 50 4.95 PE 2.95 TC 0.91 19/0.18 Copper Braid
Times LMR®195 AH 50 4.95 PEF 2.79 BC 0.94 1/0.94 Foil and Braid
URM43 AH 50 5 PE 2.95 BC 0.9 1/0.9 Copper Braid
URM76 AH 50 5 PE 2.95 TC 0.96 7/0.32 Copper Braid
WBC195 AH 50 4.95 PE 2.79 BC 0.94 1/0.94 Foil and Braid

Performance

Performance Data 13 104 A3 AH PD
Return Loss
1.0 GHz -12.78 db
3.0 GHz -8.67db
4.5 GHz -19.3 db
6.0 GHz -15.4 db

Assembly

Assembly Process AP019
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 5.41mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A
Rotary Cable Stripper 96-312B

Downloads

Interface Dimensions C-50-Ohm-TNC
Stripping Dimensions SD01
Data Sheet 13 104 A3 AH REV A01 1
Assembly Process AP019
Performance Data 13 104 A3 AH PD
