14-105-A3-AH

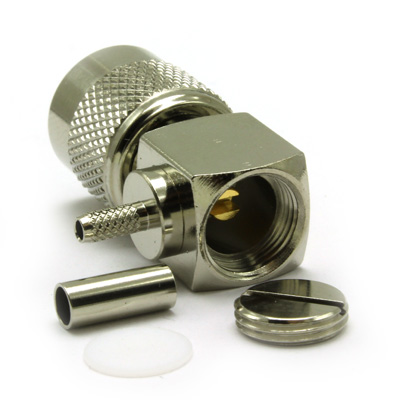

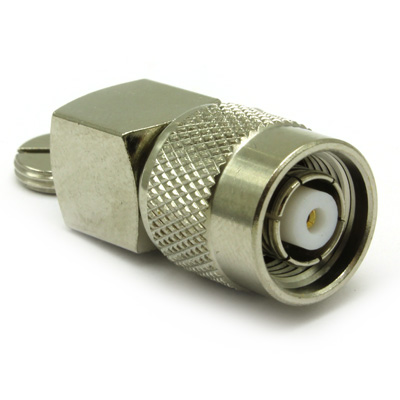

TNC Reverse Polarity Right Angle Solder / Crimp Plug

TNC 50 ohm reverse polarity right angle solder / crimp plug. crimp sleeve are annealed to provide a robust and durable termination centre contact is gold plated. Suitable for RG58 or similar cables in group AH.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	Up to 11GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Solder
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	100N min
Weight
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group AH

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 7806R	AH	50	4.95	PEF	2.8	BC	0.94	1/0.94	Foil and Braid
Belden 9203	AH	50	4.95	PE	2.95	TC	0.9	19/0.18	Copper Braid
KX15	AH	50	4.95	PE	2.95	TC	0.91	19/0.18	Copper Braid
KX23	AH	50	5.1	PTFE	2.95	SC	1.02	7/0.34	Double Copper Braid
PSF 1/6	AH	50	5	PE	2.95	BC	0.96	7/0.32	Double Copper Braid
RG141	AH	50	4.83	PTFE	3	SCCS	0.94	1/0.94	Copper Braid
RG58	AH	50	4.95	PE	2.95	TC	0.91	19/0.18	Copper Braid
Times LMR®195	AH	50	4.95	PEF	2.79	BC	0.94	1/0.94	Foil and Braid
URM43	AH	50	5	PE	2.95	BC	0.9	1/0.9	Copper Braid
URM76	AH	50	5	PE	2.95	TC	0.96	7/0.32	Copper Braid
WBC195	AH	50	4.95	PE	2.79	BC	0.94	1/0.94	Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP017
Stripping Dimensions	SD01
Outer Contact	5.41mm Hex	96-336A

Accessories

Outer Contact Crimp Tool	96-336A
Rotary Cable Stripper	96-312B

Downloads

Interface Dimensions	C-RP-TNC-50
Stripping Dimensions	SD01
Assembly Process	AP017
