16-020-A0-AI

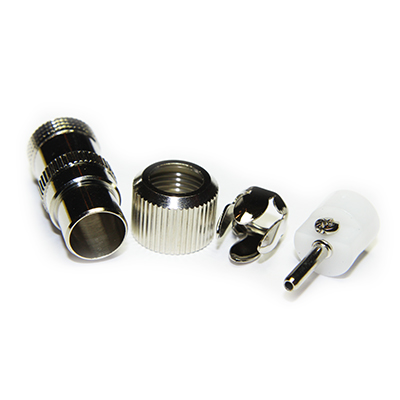

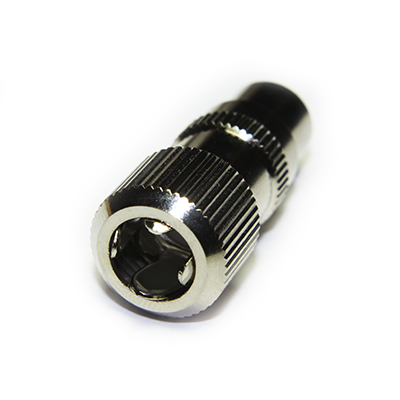

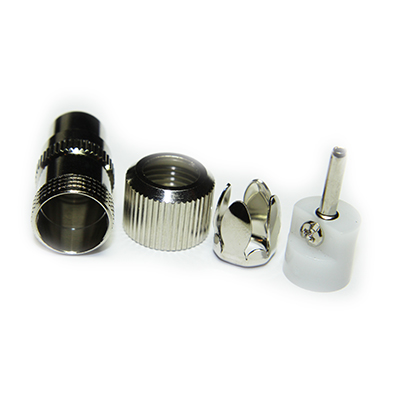

Euro TV straight 75 ohm crimp plug with gold plated centre contact. Suitable for use with RG59 and similar cables in group AI.

From £1.00 each ex VAT
1-9 = £1.30 | 10-24 = £1.24 | 25-49 = £1.10 | 50-99 = £1.03 | +100 = £1.00

Want higher quantities?
Contact info@coaxdirect.com

Electrical Specification
Impedance	75 Ohm
Frequency Range
Dielectric Withstand Voltage	500 Veff
Insulation Resistance	1000 M-Ohm
Mechanical Specification
RoHS Compliant	Yes
Centre Contact Termination	Screw
Outer Contact Termination	Screw
Mating Cycles	50
Cable Retention	120N min
Weight
Mating Force	10N max
Un-Coupling Force	10N max
Environmental Specification
Operating Temperature	-40 to +80 Deg C
IP Rating ( Mated )	IP30
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	Delrin
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
KX30	AI	93	6.15	PE	3.71	BCCS	0.64	1/0.64	CopperBraid
KX52	AI	75	-	-	-	-	-	-	-
KX6	AI	75	6.1	PE	3.7	BC	0.6	7/0.20	CopperBraid
RG59	AI	75	6.15	PE	3.71	BCCS	0.57	1/0.57	CopperBraid
RG59U	AI	75	6.15	PE	3.71	BCCS	0.57	1/0.57	CopperBraid
RG62	AI	93	6.15	PE	3.71	BCCS	0.64	1/0.64	CopperBraid
URM104	AI	75	6	PE	-	-	0.64	1/0.64	CopperBraid
URM70	AI	75	5.8	PE	3.25	TC	0.6	7/0.20	CopperBraid

Performance Data available on request, please contact COAX

Centre Contact	Screw
Outer Contact	Screw - On
