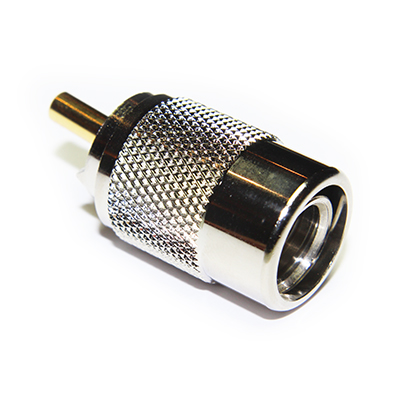

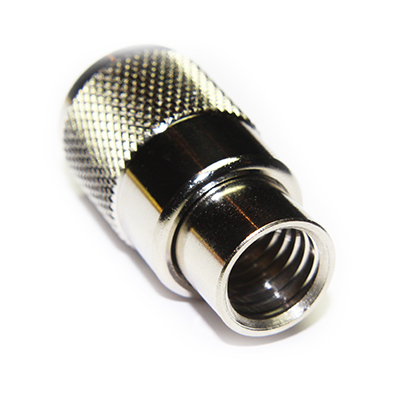

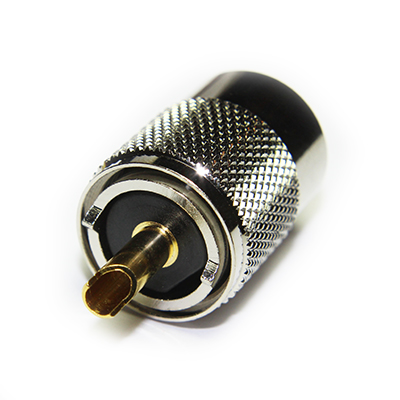

UHF Solder Twist On Plug

20-016-A0-AN

UHF straight plug with soldered contact and Twist-On tool less fixing for the braid and jacket. Suitable for use with RG213 and similar cables in group AN.

From £2.30 each ex VAT
1-9 = £3.95 |  10-24 = £3.30 |  25-49 = £2.95 |  50-99 = £2.70 |  +100 = £2.30

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 0-300 MHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Twist
Mating Cycles 250
Cable Retention 150N min
Weight
Mating Force 20N Max
Un-Coupling Force 20N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Threaded Coupling Nut Brass
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AN

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX4 AN 50 10.3 PE 7.25 BC 2.25 7/0.75 CopperBraid
RG213 AN 50 10.29 PE 7.24 BC 2.25 7/0.75 CopperBraid
URM67 AN 50 10.3 PEF 7.25 BC 2.25 7/0.75 CopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact Solder
Outer Contact Twist On
