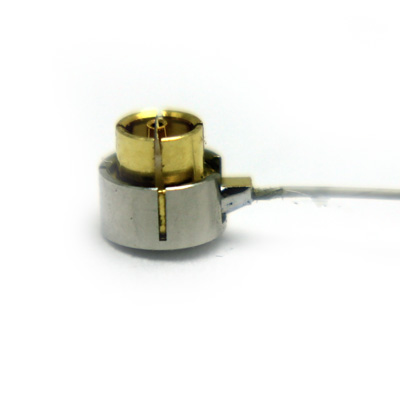

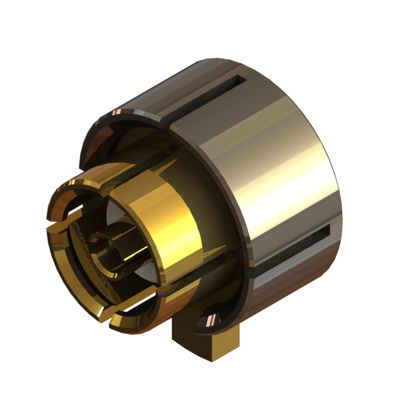

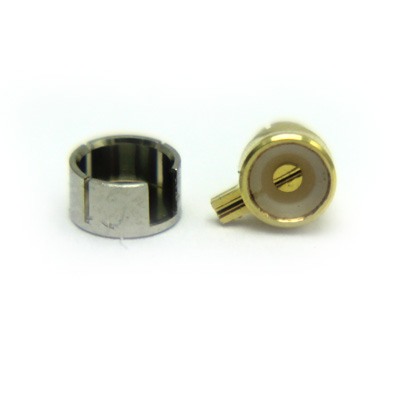

U.FL Right Angle Solder/Solder Plug

49-108-B3-KA

U.FL Right Angle Solder /Solder Plug for use with Alpha Wire 9444

Please contact COAX Direct for prices/availability

Specification

Specification
Impedance 50 Ohm
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Weight 0.11g
Environmental Specification
Operating Temperature -55 to +155 Deg C
Materials
Inner Contact Gold Plated Beryllium Copper
Outer Contact Gold Plated Phosphor Bronze
Insulater PTFE

Suitable for Cables in Group KA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Alpha Wire 9444 KA 50 0.0105" PEF 0.0062" SCCS 0.0024" 7/0.000782" Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact Solder
Outer Contact Solder

Accessories

Downloads

Data Sheet 49 108 B3 KA REV A00 1
