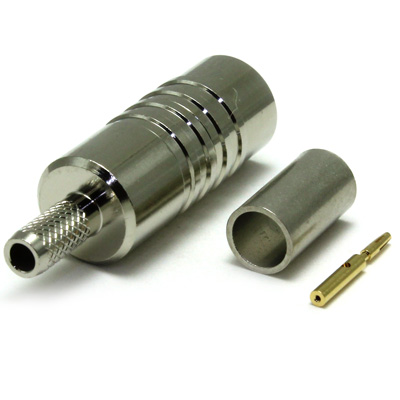

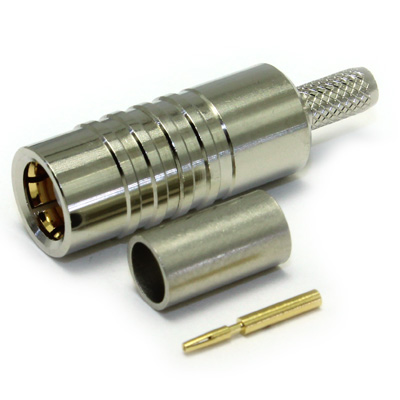

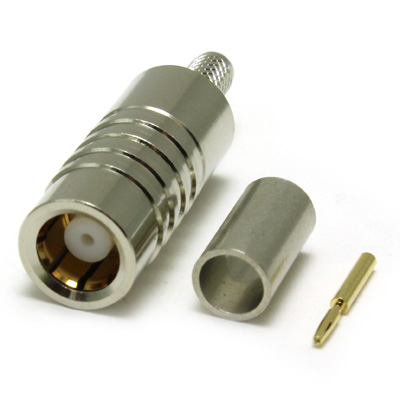

SSMZ Crimp/Crimp Socket (75 Ohm SMB)

66-054-B6-BD

SSMZ (in some applications referred to as 75 ohm SMB ) full crimp socket with push-pull sleeve for secure connection to a plug of 5.63mm dia. Suitable for BT3002 and similar cables in group BD.

From £7.95 each ex VAT
1-9 = £10.27 |  10-24 = £9.53 |  25-49 = £8.95 |  50-99 = £8.27 |  +100 = £7.95

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Has price | True

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range DC 2GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard BS9210F0022 (BT-RC8003)
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 22N min
Cable Retention 220N min
Weight 6.58g
Mating Force 22N max
Un-Coupling Force 22N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP30
Materials
Centre Contact Beryllium Copper
Outer Contact Phosphor Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group BD

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
BT3002 BD 75 3.55 PE 1.95 BC 0.31 1/0.31 Double Copper Braid
TZC75024 BD 75 3.55 PE 1.95 BC 0.31 1/0.31 Double Copper Braid
TZC75025 BD 75 4.55 PE 2.95 BC 0.32 1/0.32 Double Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP023
Stripping Dimensions SD07
Centre Contact 0.95mm Sq 96-HTS-43
Outer Contact 4.52mm Hex 96-HTS-43

Accessories

Centre Contact Crimp Tool 96-HTS-43
Outer Contact Crimp Tool 96-HTS-43

Downloads

Interface Dimensions 66 054 B6 BD Interface
Stripping Dimensions SD07
Data Sheet 66 054 B6 BD REV A00 2
Assembly Process AP023
