Coaxial Cable Termination

77-495-R3-AD

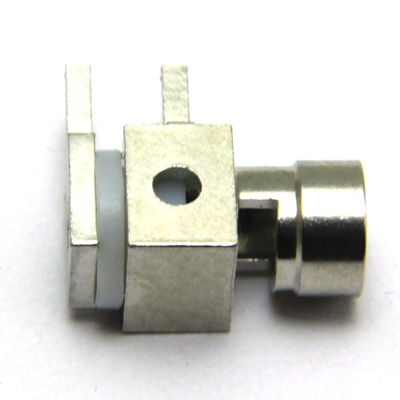

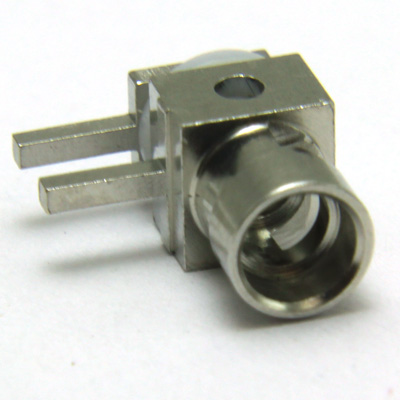

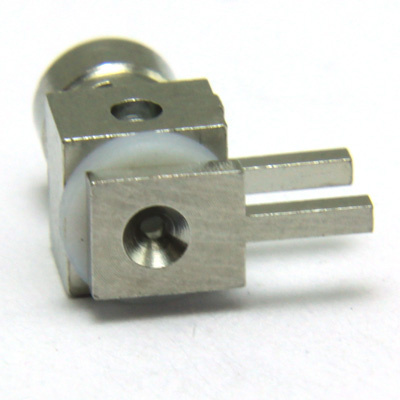

Right Angled coaxial termination, for fixing of coaxial cable directly on to a PCB. Coaxial terminators are ideal where a permanent and reliable fitting to a PCB is required. The cable is attached to the terminator by soldering the braid and centre contact, which is then through hole soldered onto the PCB.

Please contact COAX Direct for prices/availability

Specification

Specification
Impedance 50 Ohm
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Weight 0.48g
Environmental Specification
Operating Temperature -65 to +165 Deg C

Suitable for Cables in Group AD

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX22 AD 50 2.5 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
KX3 AD 50 2.54 PE 1.5 CCS 0.48 7/0.16 Copper Braid
RG174 AD 50 2.79 PE 1.52 BCCS 0.48 7/0.16 Copper Braid
RG188 AD 50 2.67 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
RG316 AD 50 2.49 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
Times LMR®100 AD 50 2.79 PE 1.52 BCCS 0.46 1/0.46 Foil and Braid
URM95 AD 50 2.3 PE 1.5 SCCS 0.46 1/0.46 Copper Braid
WBC100 AD 50 2.67 PE 1.52 CCS 0.46 1/0.46 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP034
Stripping Dimensions 77 495 SD
Centre Contact Solder
Outer Contact Solder

Accessories

Downloads

Stripping Dimensions 77 495 SD
Data Sheet 77 495 R3 AD REV A00 1
Assembly Process AP034
