99-027-Q3-AH

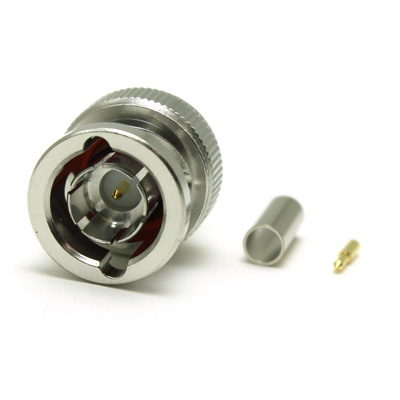

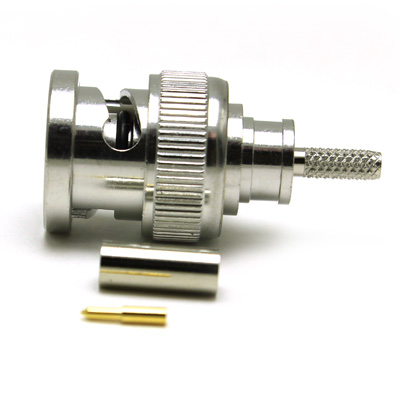

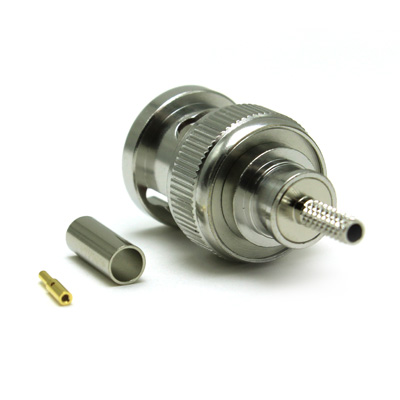

Bayonet Lock IP68 Crimp/Crimp Plug

Using the technology of a BNC and the interface of a SMA and Using a bullet contact this Bayonet Lock Plug Connector is internal sealed to archive IP68 Un-Mated

Please contact COAX Direct for prices/availability

Specification

Specification
Impedance	50 Ohm
Frequency Range	DC 3GHz
Dielectric Withstand Voltage	500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Weight	12.33g
Environmental Specification
Operating Temperature	-30 to +70 Deg C
Materials
Center Contact	Brass
Outer Contact	Brass
Insulator	PTFE
Center Contact Plating	Gold
Outer Contact Plating	White Bronze

Suitable for Cables in Group AH

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 7806R	AH	50	4.95	PEF	2.8	BC	0.94	1/0.94	Foil and Braid
Belden 9203	AH	50	4.95	PE	2.95	TC	0.9	19/0.18	Copper Braid
KX15	AH	50	4.95	PE	2.95	TC	0.91	19/0.18	Copper Braid
KX23	AH	50	5.1	PTFE	2.95	SC	1.02	7/0.34	Double Copper Braid
PSF 1/6	AH	50	5	PE	2.95	BC	0.96	7/0.32	Double Copper Braid
RG141	AH	50	4.83	PTFE	3	SCCS	0.94	1/0.94	Copper Braid
RG58	AH	50	4.95	PE	2.95	TC	0.91	19/0.18	Copper Braid
Times LMR®195	AH	50	4.95	PEF	2.79	BC	0.94	1/0.94	Foil and Braid
URM43	AH	50	5	PE	2.95	BC	0.9	1/0.9	Copper Braid
URM76	AH	50	5	PE	2.95	TC	0.96	7/0.32	Copper Braid
WBC195	AH	50	4.95	PE	2.79	BC	0.94	1/0.94	Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact	Crimp 1.75 hex	96-HTS-75
Outer Contact	Crimp 5.41 Hex	96-HTS-75

Accessories

Downloads

Interface Dimensions	BAYONET LOCK INTERFACE
Data Sheet	99 027 Q3 AH REV A00 1
