Back to Micro BNC 50 Ohm BNC Micro 50 ohm

Micro BNC Right Angle 2 Way Bulkhead PCB Jack

92-67-468-2-B3

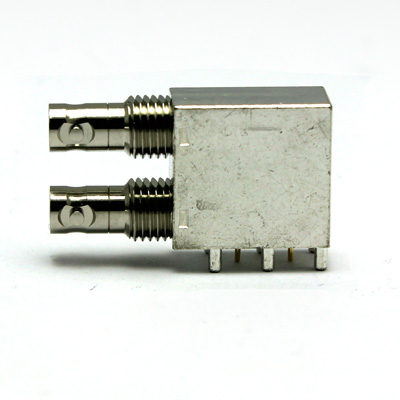

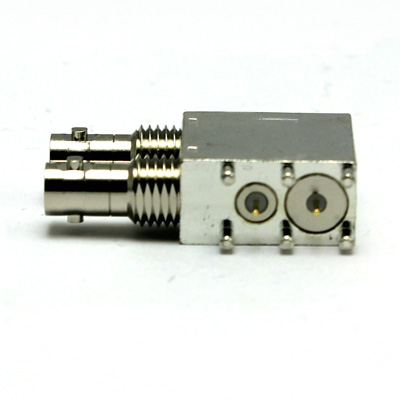

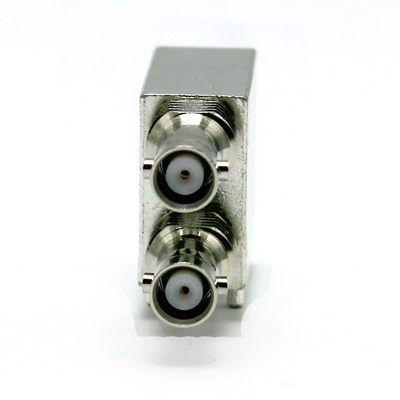

A 50 ohm 2 port Micro BNC PCB jack. Right angle mount to PCB with through hole solder fixing. Centre contact is gold plated, the outer contacts are nickel plated and the main body is tin plated. This connector is supplied without castellated circular fixing nuts, To secure to the bulkhead, using nut & spanner 96-1135. Suitable for use up to 6GHz.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 0-6 GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 10000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Outer Contact Termination Clamp
Mating Cycles 500
Contact Retention 20N min
Weight 14.48g
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Beryllium Copper
Outer Contact Jack Brass
Insulator PTFE
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Accessories

1/4 x 36 UNS x 2.5 mm Thick - 4 Slot Castle Nuts 100-113
6.4 x 7.5 x 2 mm Castle Nut Spanner 1/4" Hex Drive 96-1135

Downloads

Interface Dimensions C MICRO BNC 50 OHM REV A00 0
Data Sheet 92 67 468 2 B3 REV A03 1
