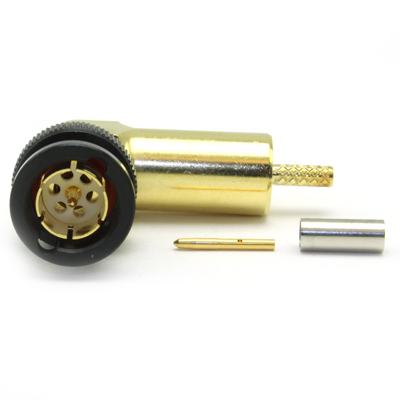

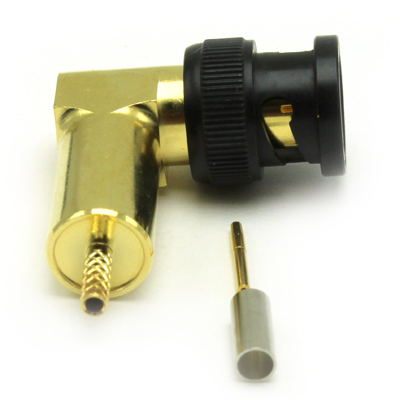

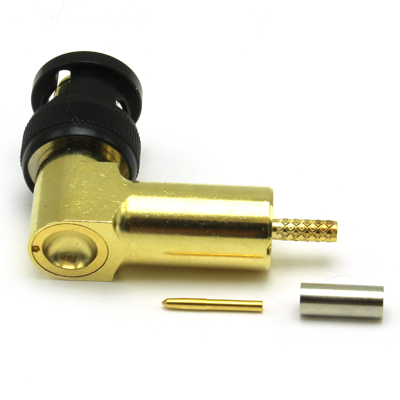

BNC 6GHz Right Angle Crimp / Crimp Plug

10-104-W66-AB

High Performance ‘KORUS’ 6GHz True 75 ohm BNC with black finished body and gold plated inner and outer contact. This Right Angle Crimp/Crimp plug gives stable low loss performance to beyond 6GHz and is ideal for 4K / Ultra HD broadcast applications. Both contact and crimp sleeve are annealed to provide a robust and durable termination. Suitable for Image RG179 or similar cables in group AB

From £9.50 each ex VAT
1-9 = £11.00 |  10-24 = £10.80 |  25-49 = £10.30 |  50-99 = £9.90 |  +100 = £9.50

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 6GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 120N min
Weight 26.24
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 179DT AB 75 2.54 PEF 1.42 BC 0.31 1/0.31 Foil and Braid
RG179 B/U AB 75 2.54 PTFE 1.6 SCCS 0.3 7/0.1 Copper Braid
RG179 Solid AB 75 2.54 Foam 1.6 SCSC 0.3 1/0.3 Copper Braid
RG179 Stranded AB 75 2.54 Foam 1.6 SCSC 0.3 7/0.1 Copper Braid
RG187 AB 75 2.67 PTFE 1.52 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data 10 104 W66 AB PD
Return Loss
3 GHz -23.31db
6 GHz -17.83db
9 GHz -19.45db
12 GHz -12.05db

Assembly

Assembly Process AP019
Stripping Dimensions SD01
Centre Contact 0.95 mm Sq 96-HTS43
Outer Contact 3.25mm Hex 96-HTS43

Accessories

Centre Contact Crimp Tool 96-HTS43
Outer Contact Crimp Tool 96-HTS43

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 104 W66 AB REV B01 3
Assembly Process AP019
Performance Data 10 104 W66 AB PD
