BNC 4 Hole Panel Mount Jack Solder Receptacle

10-371-B3

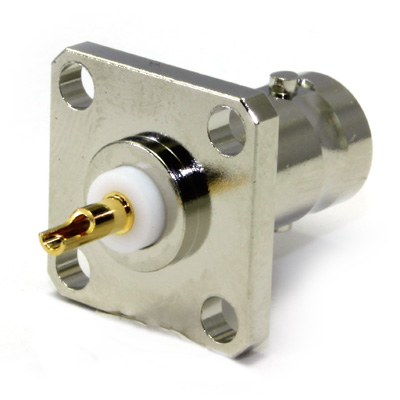

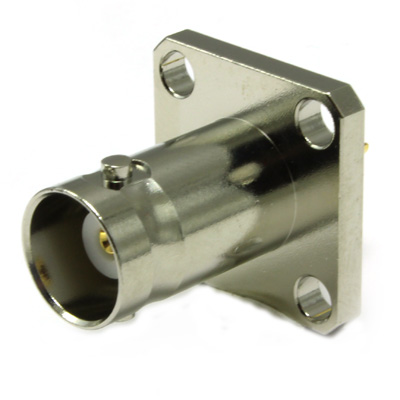

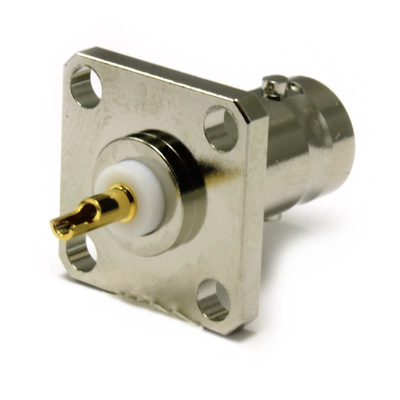

BNC 50 ohm straight 17.5 mm Sq 4 hole flange mount Jack with solder contact, for applications up to 1GHz.

From £1.82 each ex VAT
1-9 = £2.43 |  10-24 = £2.28 |  25-49 = £2.02 |  50-99 = £1.92 |  +100 = £1.82

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Other
Mating Cycles 250
Contact Retention 10N min
Cable Retention 50N min
Weight 10.02g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact Solder

Accessories


Downloads

Interface Dimensions C-50-Ohm-BNC
