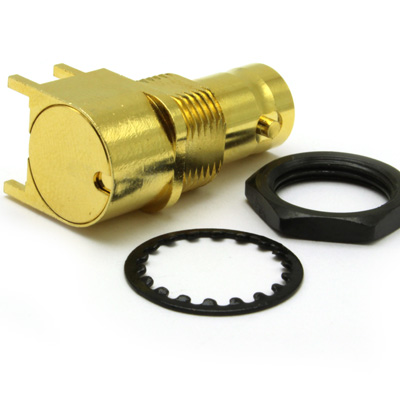

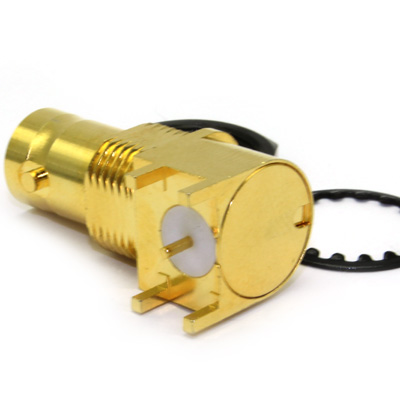

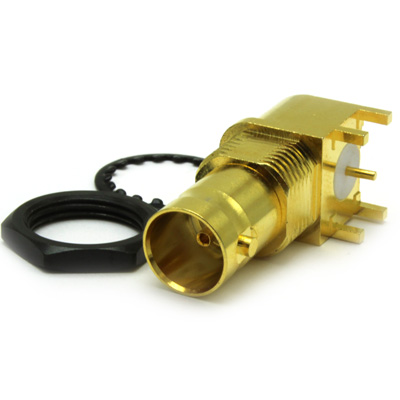

BNC Right Angle Low Profile Bulkhead Jack True 75 Ohm (6GHz)

10-416-D66

High Performance 6GHz True 75 ohm BNC with gold plated inner and outer contact and black lock nut. This Low Profile Right Angle PCB bulkhead jack gives stable low loss performance to 6GHz and is ideal for HD broadcast applications.

From £4.00 each ex VAT
1-9 = £4.66 |  10-24 = £4.52 |  25-49 = £4.42 |  50-99 = £4.25 |  +100 = £4.00

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 6 GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 500
Contact Retention 10N min
Cable Retention 50N min
Weight 22.37g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX
Return Loss
1.5 GHz -29.9 db
3.0 GHz -22.64 db

Assembly

Centre Contact Solder

Accessories

16mm Dia Castle Nut 100-075
Castle Nut Spanner 96-1140

Downloads

Interface Dimensions C-75-Ohm-BNC
Data Sheet 10 416 D66 REV B00 2
