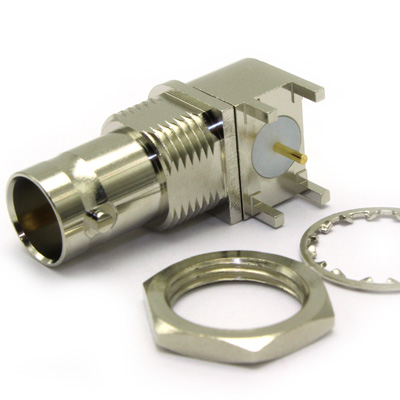

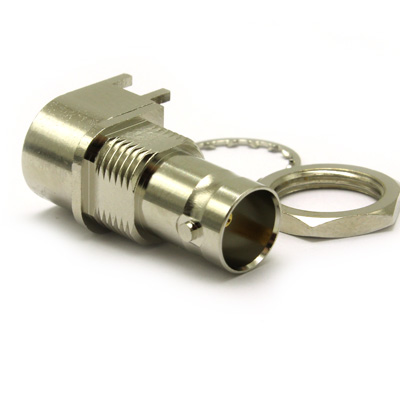

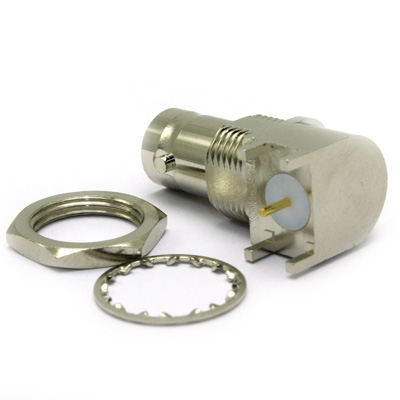

BNC Right Angle Low Profile Bulkhead Jack True 75 Ohm 3G

10-470-B36

BNC True 75 Ohm Low Profile Right Angle PCB bulkhead jack Giving a Return Loss of -18.19@ 4.5GHz for applications up to 4.5GHz.. Gold plated centre contact and Nickel outer Body .

From £3.85 each ex VAT
1-9 = £4.80 |  10-24 = £4.52 |  25-49 = £4.24 |  50-99 = £4.15 |  +100 = £3.85

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5 GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 500
Contact Retention 10N min
Cable Retention 50N min
Weight 18.05g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data 10 470 B36 PD
Return Loss
1.5 GHz -25.93 db
3.0 GHz -21.02 db
4.5 GHz -18.19 db
6.0 GHz -14.37 db

Assembly

Centre Contact Solder

Accessories

16mm Dia Castle Nut 100-075
Castlke Nut Spanner 96-1140

Downloads

Interface Dimensions C-75-Ohm-BNC
Data Sheet 10 470 B36 REV C00 1
Performance Data 10 470 B36 PD
