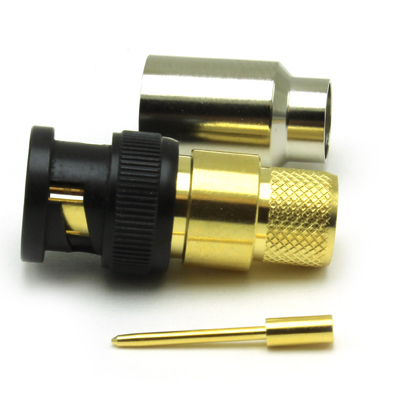

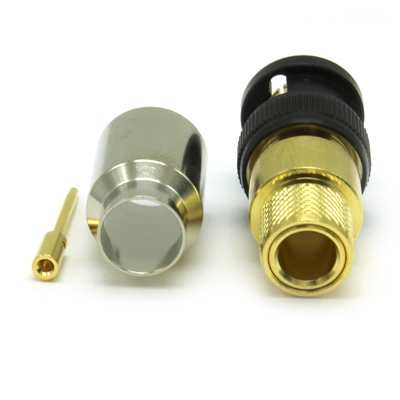

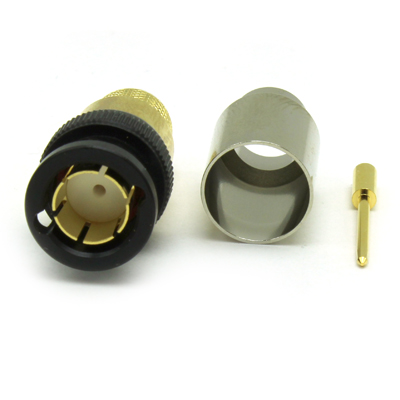

'KORUS' Ultra HD 12GHz BNC Straight Crimp Plug True 75 Ohm

10-005-W126-FI

Ultra HD High Performance ‘KORUS’ 12GHz True 75 ohm BNC with black finished body and gold plated inner and outer contact. High Performance 75 ohm BNC crimp plug tested to meet the requirements of SMPTE ST 2081-1 & ST 2082-1 for use in 6G & 12G systems. Suitable for cables in group FI.

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -20. dB @ 6GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 150N min
Weight 11.11g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Brass
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 100

Suitable for Cables in Group FI

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 1794A FI 75 8.13 PEF 5.72 BC 1.29 1/1.29 Foil and Braid
Belden 4794R FI 75 8.13 FHPE 5.72 SPC 1.29 1/1.29 Foil/Braid/Foil
TACHII TCX-5.5CSHV FI 75 7.7 Foam 5.6 BC 1.4 1/1.4 Bonded Foil and Braid
TACHII TCX-5.5CUHD FI 75 7.7 Foam 5.6 BC 1.4 1/1.4 Bonded Foil and Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
3.0GHz -32.dB
4.5GHz -25.dB
6.0GHz -21dB
12.0GHz -20dB

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72mm Hex 96-HTS-75A
Outer Contact 8.23mm Hex 96-HTS-75A

Accessories

Centre Contact Crimp Tool 96-HTS-75A
Outer Contact Crimp Tool 96-HTS-75A
BNC Plug Insertion And Extractor Tool 96-2208

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 005 W126 FI REV D00 1
Assembly Process AP001
