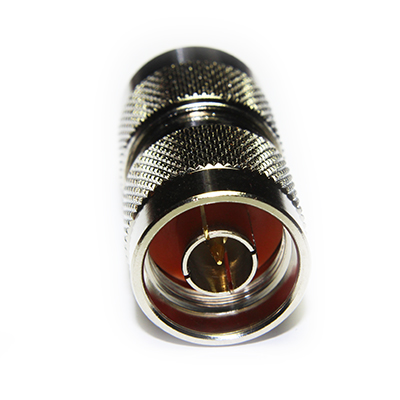

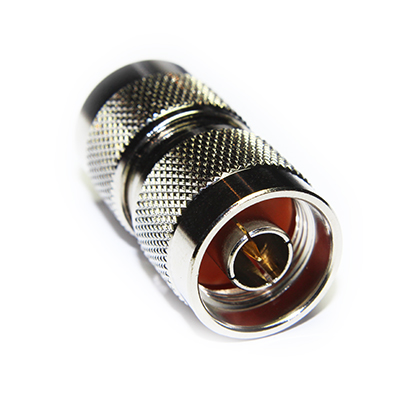

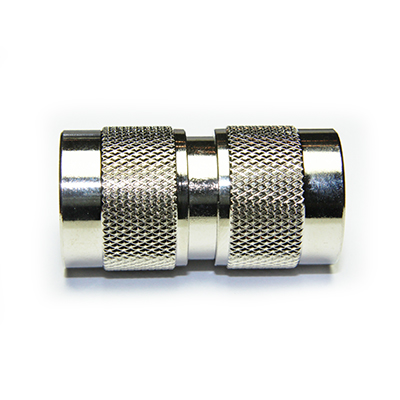

N Type Straight Plug to Plug Adaptor

25-514-B3

N Type 50 ohm straight plug to plug adaptor. This adaptor has a gold plated centre conductor and nickel plated body.

From £3.74 each ex VAT
1-9 = £4.67 |  10-24 = £4.40 |  25-49 = £4.15 |  50-99 = £3.93 |  +100 = £3.74

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Mating Cycles 500
Contact Retention 27N min
Weight 56g
Mating Force 6.6Ncm max
Un-Coupling Force 6.6Ncm max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Accessories


Downloads

Interface Dimensions C-50-Ohm-N
Data Sheet 25 514 B3 REV A00 1
