SMA Rear Mount Bulkhead Crimp / Crimp Jack

30-254-D3-AD

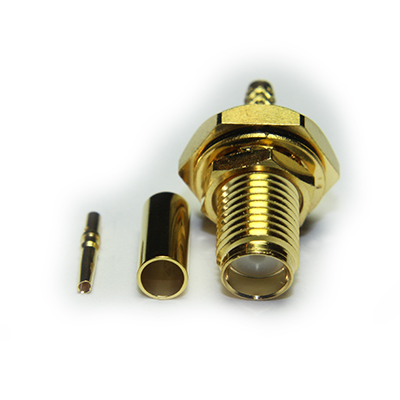

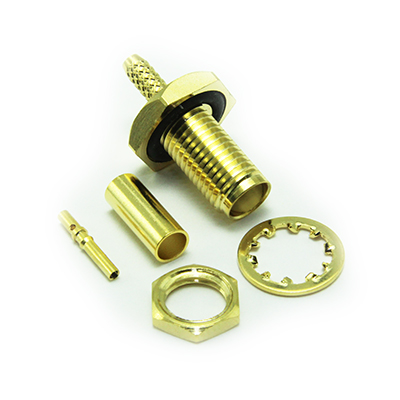

SMA bulkhead mount full crimp jack, rear mounted with a single flat on the body. Gold plated body and contact, the centre contact and crimp sleeve are annealed for enhanced performance. Suitable for RG174 and similar cables in group AD.

From £1.65 each ex VAT
1-9 = £2.20 |  10-24 = £2.06 |  25-49 = £1.83 |  50-99 = £1.74 |  +100 = £1.65

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12.5GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 100
Contact Retention 27N min
Cable Retention 100N min
Weight 4.9g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AD

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX22 AD 50 2.5 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
KX3 AD 50 2.54 PE 1.5 CCS 0.48 7/0.16 Copper Braid
RG174 AD 50 2.79 PE 1.52 BCCS 0.48 7/0.16 Copper Braid
RG188 AD 50 2.67 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
RG316 AD 50 2.49 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
Times LMR®100 AD 50 2.79 PE 1.52 BCCS 0.46 1/0.46 Foil and Braid
URM95 AD 50 2.3 PE 1.5 SCCS 0.46 1/0.46 Copper Braid
WBC100 AD 50 2.67 PE 1.52 CCS 0.46 1/0.46 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD03
Centre Contact 1.07mm Square 96-336J
Outer Contact 3.25mm Hex 96-336J

Accessories

Centre Contact Crimp Tool 96-336J
Outer Contact Crimp Tool 96-336J

Downloads

Interface Dimensions C-SMA
Stripping Dimensions SD03
Data Sheet 30 254 D3 AD A01 2
Assembly Process AP001
