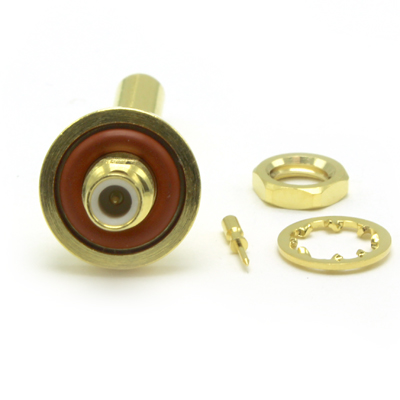

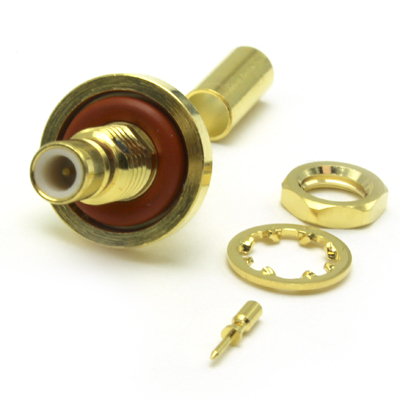

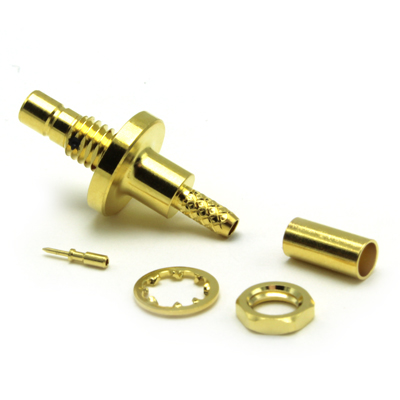

SMB Rear Mount Bulkhead Crimp/Crimp Jack IP68 Hermetically Sealed

32-290-D10-AD

SMB 50 ohm bulkhead mount full crimp jack IP68 Hermetically Sealed and tested to 50m un mated, rear mounted with a single flat on the body. Gold plated contact and body. The centre contact and crimp sleeve are annealed for enhanced performance. Suitable for RG174 and similar cables in group AD.

From £8.71 each ex VAT
1-9 = £15.32 |  10-24 = £13.66 |  25-49 = £10.93 |  50-99 = £8.71 |  +100 = £8.71

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 4GHz
Dielectric Withstand Voltage 500 Veff
Insulation Resistance 1000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-10
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 3.21g
Mating Force 62N max
Un-Coupling Force 62N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Unmated ) IP68 3m x 2 Hours ( Tested to 50m )
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AD

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX22 AD 50 2.5 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
KX3 AD 50 2.54 PE 1.5 CCS 0.48 7/0.16 Copper Braid
RG174 AD 50 2.79 PE 1.52 BCCS 0.48 7/0.16 Copper Braid
RG188 AD 50 2.67 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
RG316 AD 50 2.49 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
Times LMR®100 AD 50 2.79 PE 1.52 BCCS 0.46 1/0.46 Foil and Braid
URM95 AD 50 2.3 PE 1.5 SCCS 0.46 1/0.46 Copper Braid
WBC100 AD 50 2.67 PE 1.52 CCS 0.46 1/0.46 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP023I
Stripping Dimensions 32 290 D10 SD
Centre Contact 0.95SQ 96-HTS43
Outer Contact 3.25mm Hex 96-HTS43

Accessories

Centre Contact Crimp Tool 96-HTS43
Outer Contact Crimp Tool 96-HTS43

Downloads

Interface Dimensions C-SMB
Stripping Dimensions 32 290 D10 SD
Data Sheet 32 290 D10 AD REV A00 0
Assembly Process AP023I
