TNC Crimp / Crimp Plug 50 Ohm

13-005-B3-AO

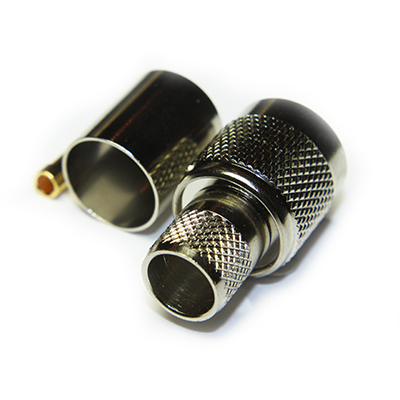

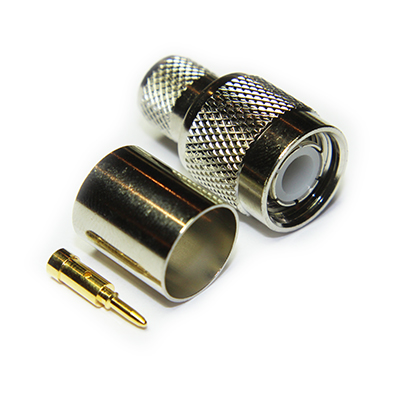

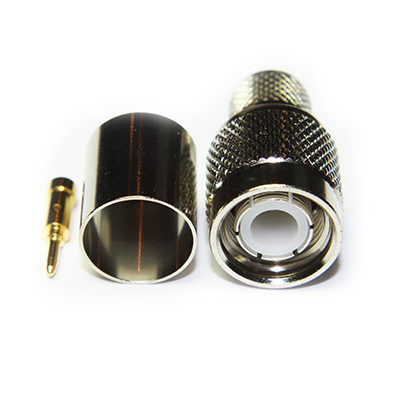

TNC 50 ohm straight full crimp plug. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG214 or similar cables in group AO.

From £2.50 each ex VAT
1-9 = £3.25 |  10-24 = £3.05 |  25-49 = £2.89 |  50-99 = £2.75 |  +100 = £2.50

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 220N min
Weight 16.27g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +150 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Threaded Coupling Nut Brass
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AO

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG214 AO 50 10.8 PE 7.24 SC 2.25 7/0.75 DoubleCopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions 10 005 B3 AO SD
Centre Contact 2.54 mm Hex 96-336K
Outer Contact 10.9 mm Hex 96-336K

Accessories

Centre Contact Crimp Tool 96-336K
Outer Contact Crimp Tool 96-336K
Rotary Cable Stripper 96-312S

Downloads

Interface Dimensions C-50-Ohm-TNC
Stripping Dimensions 10 005 B3 AO SD
Data Sheet 13 005 B3 AO REV A00 1
Assembly Process AP001
