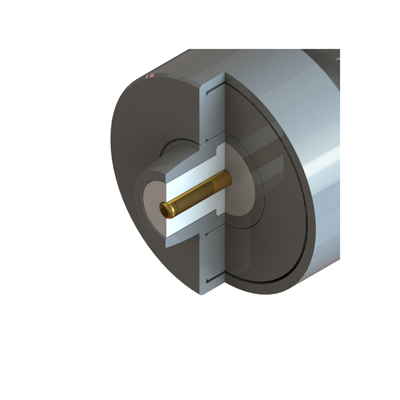

Magnetic Coupled 4 Hole Flange Bulkhead Top Hat Clamp Jack

99M-276-H3-AH

Magnetic Coupled 4 Hole Flange Bulkhead Jack using a Solder Center Contact and a Top Hat Cable Clamp to be used with Mating Plug for Easy Mating and Un-Mating High Number of Cycles Made From Stainless Steel Outer Body and Gold Plated Center Contact

Please contact COAX Direct for prices/availability

Specification

Specification
Impedance 50 Ohm
Frequency Range DC 1GHz
Dielectric Withstand Voltage 500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Clamp
Mating Cycles 10,000
Weight 48.3g
Environmental Specification
Operating Temperature -55 to +125 Deg C
Materials
Center Contact Brass
Outer Contact Stainless Steel
Insulator PTFE
Magnet Neodymium
Center Contact Plating Gold
Outer Contact Plating Passivated

Suitable for Cables in Group AH

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 7806R AH 50 4.95 PEF 2.8 BC 0.94 1/0.94 Foil and Braid
Belden 9203 AH 50 4.95 PE 2.95 TC 0.9 19/0.18 Copper Braid
KX15 AH 50 4.95 PE 2.95 TC 0.91 19/0.18 Copper Braid
KX23 AH 50 5.1 PTFE 2.95 SC 1.02 7/0.34 Double Copper Braid
PSF 1/6 AH 50 5 PE 2.95 BC 0.96 7/0.32 Double Copper Braid
RG141 AH 50 4.83 PTFE 3 SCCS 0.94 1/0.94 Copper Braid
RG58 AH 50 4.95 PE 2.95 TC 0.91 19/0.18 Copper Braid
Times LMR®195 AH 50 4.95 PEF 2.79 BC 0.94 1/0.94 Foil and Braid
URM43 AH 50 5 PE 2.95 BC 0.9 1/0.9 Copper Braid
URM76 AH 50 5 PE 2.95 TC 0.96 7/0.32 Copper Braid
WBC195 AH 50 4.95 PE 2.79 BC 0.94 1/0.94 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP035

Accessories

Downloads

Data Sheet 99M 276 H3 AH REV A00 1
Assembly Process AP035
